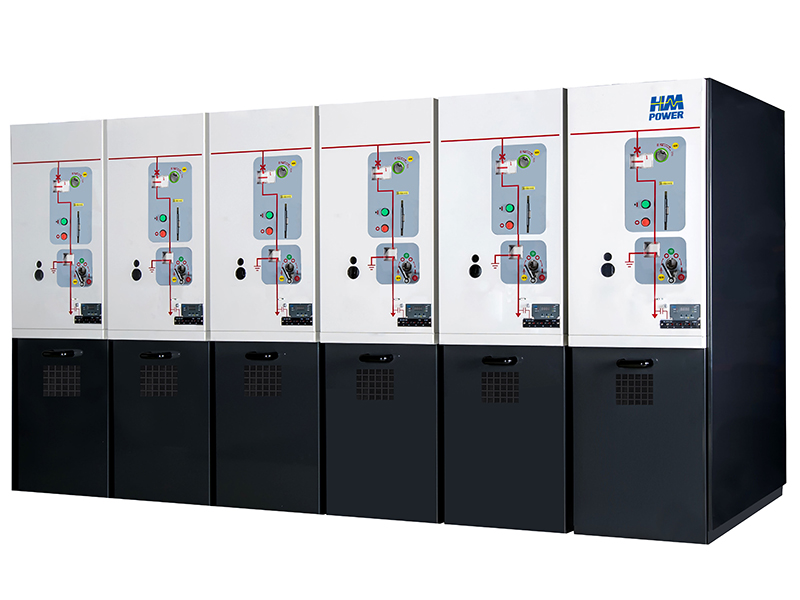

Atmospheric Pressure Sealed Nature-Air Insulated RMU/Switchgear (SR-7.2kV/12kV)

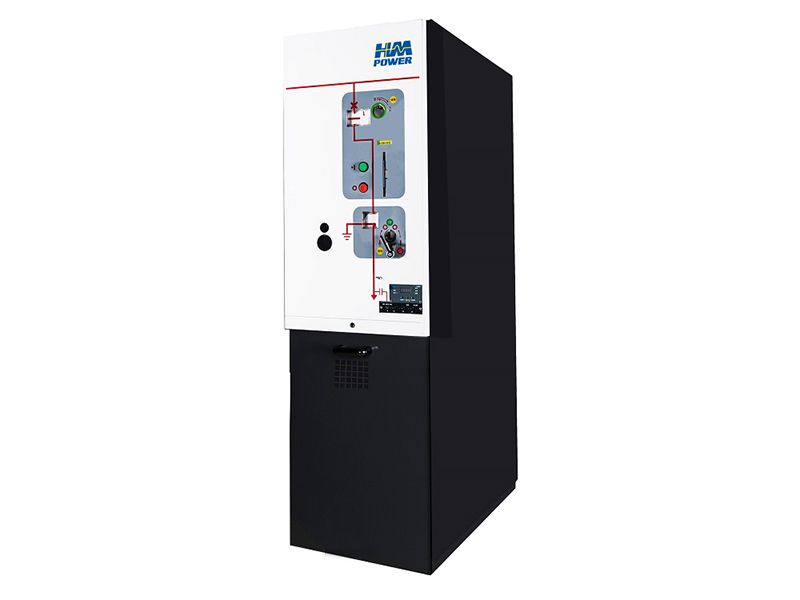

ASNA RMU/Switchgear（SR-7.2kV/12kV）

Atmospheric pressure sealed nature-air insulated RMU/switchgear offers a reliable alternative to traditional gas-insulated switchgear, using atmospheric pressure nature-air as the insulation medium. This innovative design eliminates the need for gas monitoring and system shutdown for gas-refilling, making it a low-maintenance solution. The atmospheric pressure sealed nature-air insulated system ensures stable operation without the risk of gas leaks or pressure drops.

Request a Quote

The RMU features single-phase insulation, which enables easy fault isolation and prevents phase-to-phase arc faults without affecting the entire system, providing a safer and more reliable power distribution solution.

Technical Specifications:

  • Rated voltage: 7.2kV / 12kV
  • Rated current: 630A / 1250A

What’s Atmospheric Pressure Sealed Nature-Air Insulated Ring Main Unit (ASNA RMU)?

An Atmospheric Pressure Sealed Nature-Air Insulated Ring Main Unit (ASNA RMU) is a power distribution unit where the main electrical components are housed in a sealed cabinet, using air at atmospheric pressure as the primary medium of insulation. The design of this switchgear ensures a leak-proof, fully insulated and low maintenance operation, with key components like the vacuum interrupters, load break switches, and bus-bars enclosed safely. With their fully enclosed and insulated construction, RMUs minimize the risk of electrical faults, providing enhanced safety in environments for industrial, commercial, and residential applications where reliability and protection are critical.

With over 50,000 units operating worldwide for over a decade with proven safe, stable and fault-free performance, this power distribution unit works without SF6, complying with the international trend. SF6-free switchgear leads the development of sustainable RMU technology.
Advantages of Air Insulated RMU
  • World’s first atmospheric pressure sealed technology
    The RMU uses a sealed air tank where the internal air pressure is equalized with external atmospheric pressure, eliminating the risk of gas leaks. This design doesn’t need gas replenishment or frequent maintenance, addressing the common issues found in traditional gas-insulated switchgear.
  • Aligned with global zero-carbon initiatives
    By using atmospheric air instead of industrially produced gases, this RMU produces no greenhouse gas emissions and eliminates the need for gas recovery and disposal. Our RMU supports the global movement to phase out SF6 gas, making it an environmentally responsible choice for sustainable power distribution.
  • Compact design
    Despite being air-insulated, the RMU is designed to be as compact as traditional gas-insulated units, making it easy to replace older systems on-site. Its modular design helps to reduce overall project costs by minimizing space requirements and simplifying the installation process.
  • High environmental adaptability
    The RMU has proven performance in diverse conditions, with extensive operational experience in environments with extreme temperatures, humidity, and dust. This makes it suitable for a wide range of global applications, ensuring reliable performance in challenging conditions.
Ensuring High Power Supply Reliability
  • Reinforced structural design
    Our RMU is equipped with a pressure balance device inside the sealed air tank, which includes an air filtration system. This ensures that the air inside remains clean and unaffected by external pollutants like dust or salt fog, providing a controlled environment for the main circuit and ensuring continuous, reliable performance.
  • HSafe insulation system
    Developed to operate reliably for 40 years under harsh conditions, our single-phase insulation system is designed with multiple layers of safety margins, eliminating the risk of phase-to-phase arc explosions. The casing and all internal non-conductive components are securely grounded. Since 2010, more than 50,000 units have been operating globally, with applications across Asia, Europe, and Africa without a single fault.
  • Reliable operating mechanism
    The circuit breaker mechanism and the three-position isolator/grounding switch are designed for simplicity, compactness, and reliability. The breaker exceeds 10,000 mechanical operations, and the isolator/grounding switch has a lifespan of over 3,000 operations, ensuring long-term operational dependability.
Overall Dimension

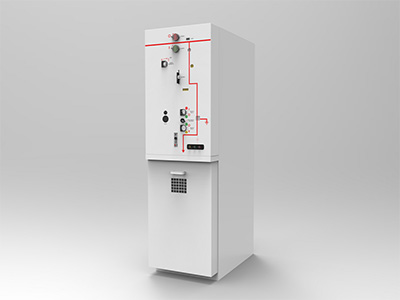

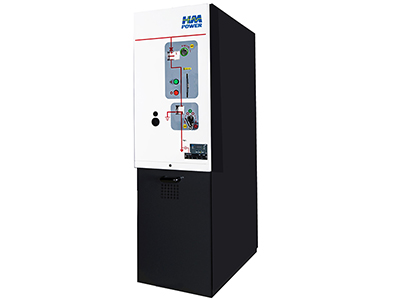

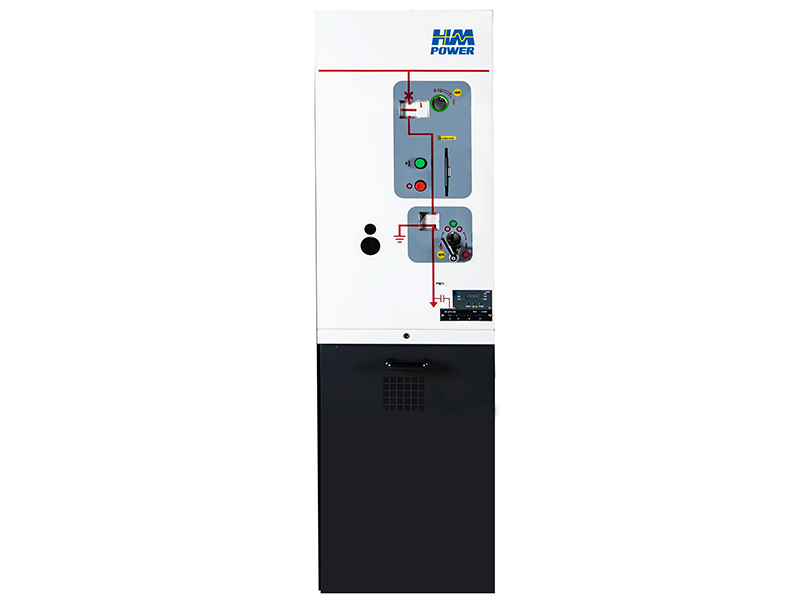

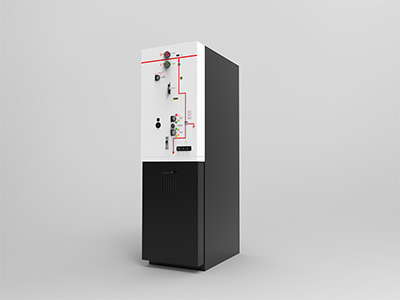

  • 1-bay1-bay

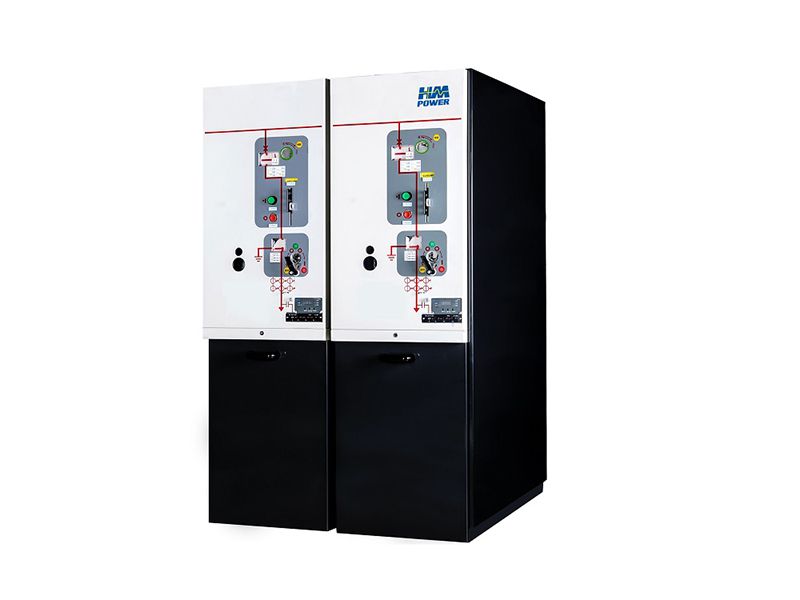

  • 2-bay2-bay

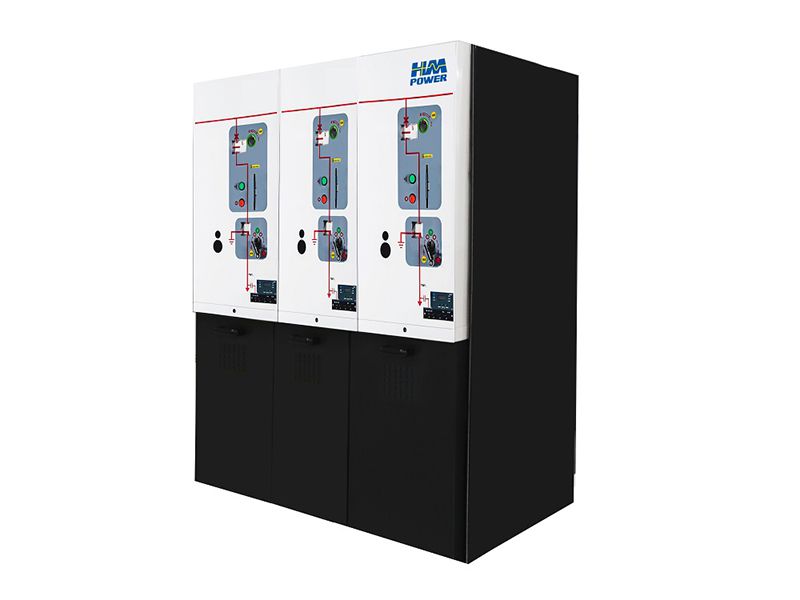

  • 3-bay3-bay
Unit Length (mm) Width (mm) Height (mm)

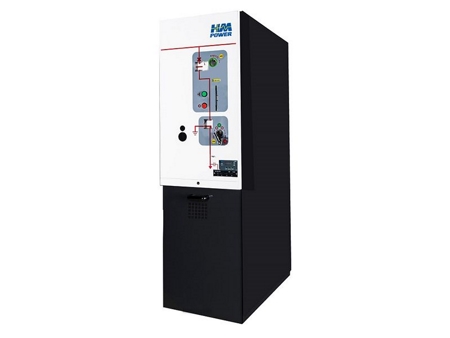

1-bay 460 770 1640
2-bay 810 770 1640
3-bay 1160 770 1640

Differences among 1-bay, 2-bay and 3-bay

  • Structure
    the difference depends on whether the primary conductive part shared an enclosure.
  • Function
    2-bay equals a combination of two 1-bays, and 3-bay equals three 1-bays or one 1-bay and one 2-bay.
  • Size
    2-bay is slightly smaller than a combination of two 1-bays, and 3-bay smaller than three 1-bays or one 1-bay and one 2-bay.
  • Price
    1-bay is more costly compared with 2-bay or 3-bay evenly.
Applications
  • The Atmospheric Pressure Sealed Nature-Air Insulated RMU/Switchgear can be applied in several industries, such as airports, government buildings, ports, hospitals, data centers, commercial properties and transportation system.
  • Thanks to its small size and maintenance-free system, the RMU can be deployed in remote sites which demand more maintenance labour;
  • The Atmospheric Pressure Sealed Nature-Air Insulated RMU/Switchgear can also be transformed into street light box which supplies electricity to street lamps and stands as street decoration as night falls.
Item Unit Parameter
Rated Pressure (Ur) kV 7.2 12
Rated Frequency (Fr) Hz 50, 60
Rated Current (Ir) A 630, 1250
Rated Insulation Level Short-time Power-frequency Withstand Voltage (Ud) kV 20/23 42/48
Lightning Impulse Withstand Voltage (Up) kV 60/70 75/85
Rated Short-time Withstand Current (Ik) kA 20/25
Rated Short-circuit Duration（tk） S 4
Rated Peak Withstand Current（Ip） kA 50/63
Rated Short-circuit Breaking Current (Isc) kA 20/25
Rated Short-circuit Making Current (Ima) Vacuum interrupter kA 50/63
Earthing switch
Auxiliary Circuit and Control Circuit Rated Pressure (Ua) DC/AC V ≤400
Power-frequency Withstand Voltage (1min) V 2000
Mechanical Endurance Circuit breaker times 10000
Disconnecting switch times 3000
Earthing switch times 3000
Electrical Endurance Circuit breaker class E2
Earthing switch class E2
Degree of Protection by Enclosure IP4X
Degree of Protection by Fully Sealed Tank IP65

Normal Service Conditions

Maximum temperature +40℃ (average temperature ≤35℃ within 24h)
Minimum temperature -25℃
Altitude ≤2000m
Daily average relative humidity ≤95%
Monthly average relative humidity ≤90%

Special Service Conditions

Provided the equipment should be run in special and harsh environment, please consult our experts.

Fundamental Units

SR series with following medium-voltage module function:

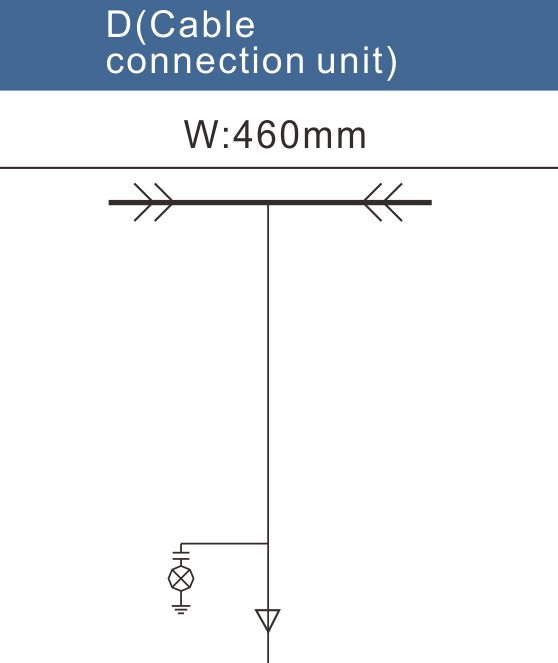

  • D (cable connection unit)D (cable connection unit)

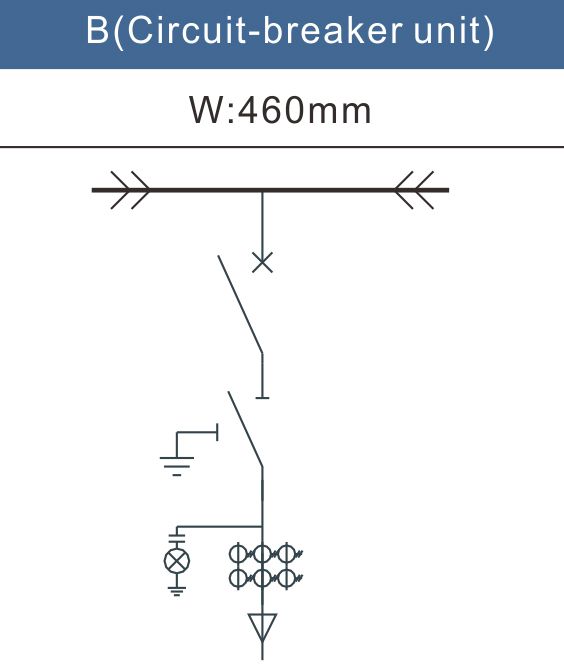

  • B (circuit breaker unit)B (circuit breaker unit)

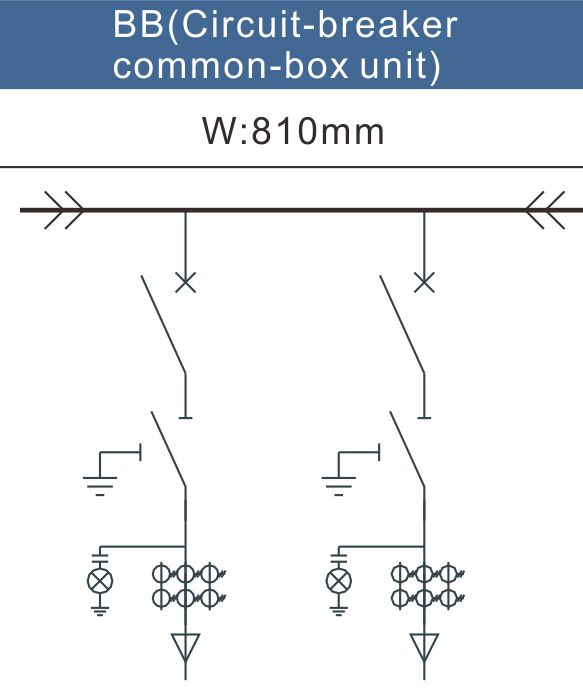

  • BB (circuit-breaker shared enclosure unit)BB (circuit-breaker shared enclosure unit)

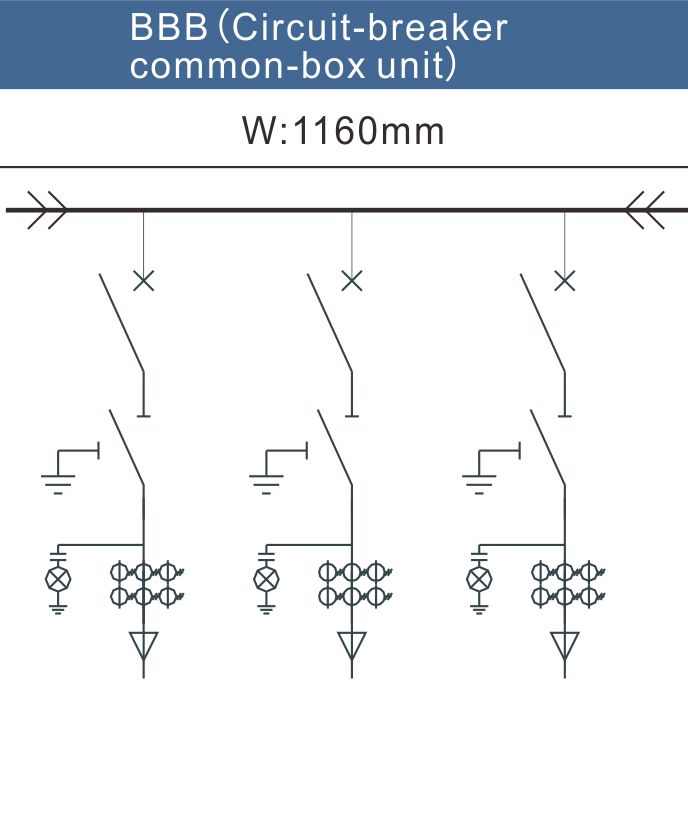

  • BBB (circuit-breaker shared enclosure unit)BBB (circuit-breaker shared enclosure unit)

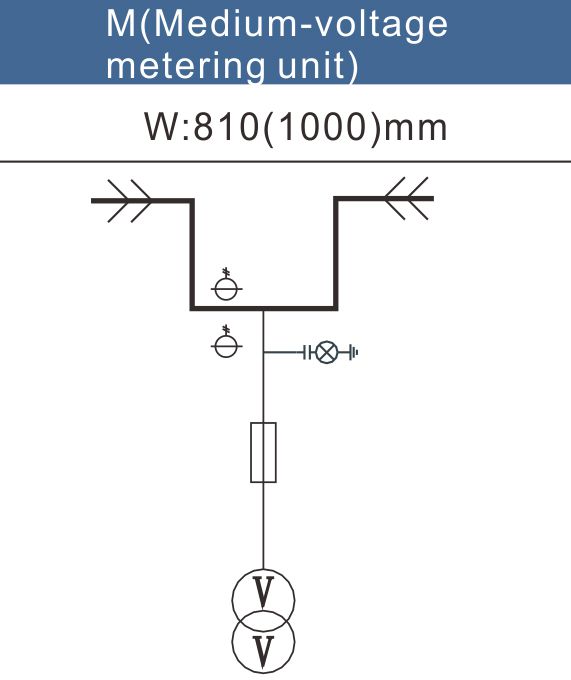

  • M (medium-voltage metering unit)M (medium-voltage metering unit)

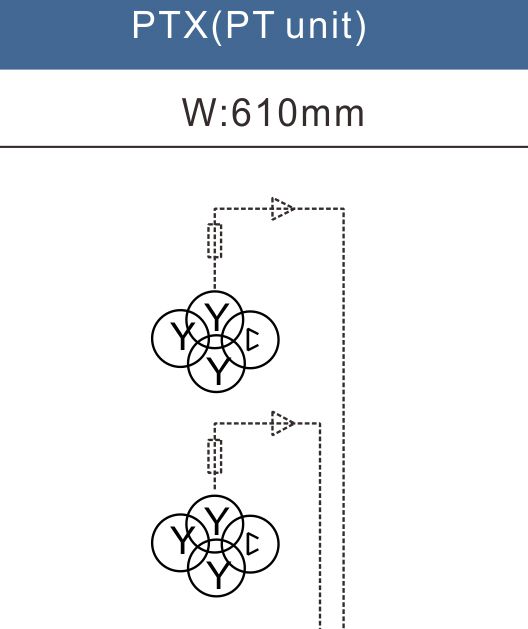

  • PTX (PT unit)PTX (PT unit)

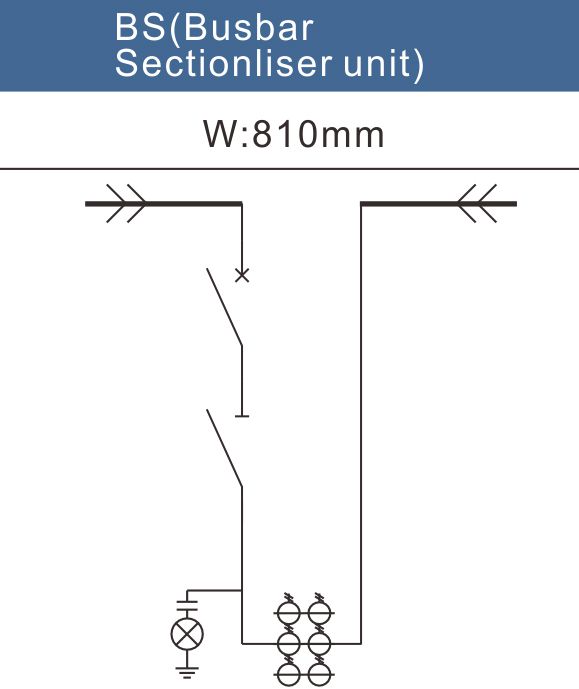

  • BS (busbar sectionliser unit)BS (busbar sectionliser unit)

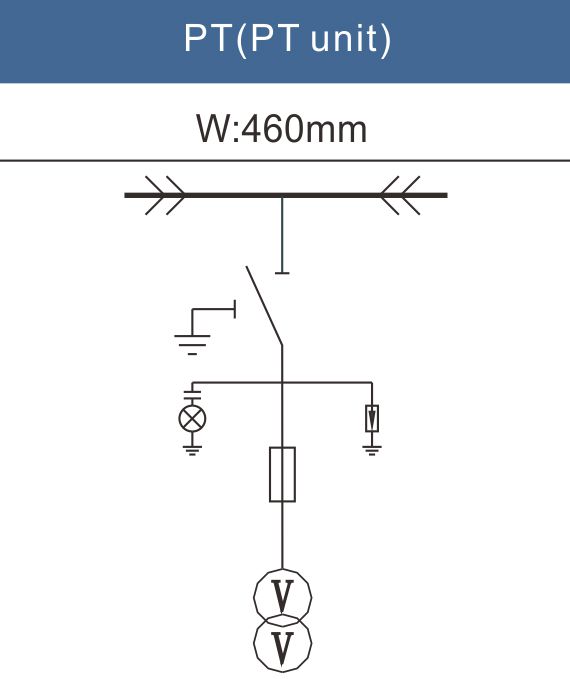

  • PT (PT unit)PT (PT unit)
  • PT (PT unit)PT (PT unit)

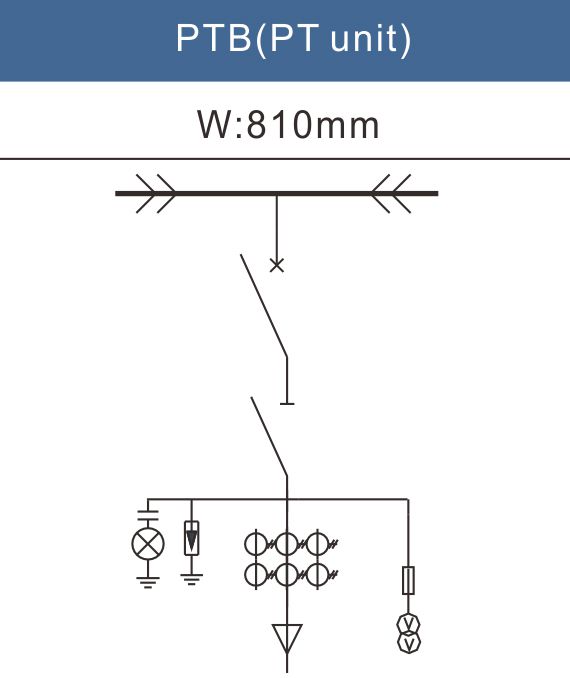

  • PTB (PT unit)PTB (PT unit)

Note: "↠" and "↞" in the diagram are expandable kits.

Flexible combination can be customized as request. Please consult the manufacturer if you have any question.

More About Air Insulated RMU
  • How does the RMU ensures safe and reliable operation?

    A:
    First, the atmospheric pressure fully sealed system shields the RMU from external effects and guarantees the stable operation. Second, the switchgear’s single-phase insulating interior eliminates risks of internal arcing explosion. Third, the insulating medium inside the cabinet is air of atmospheric pressure which prevents the insulation performance from being weakened by pressure leak during the service life.

  • What is the status of Atmospheric Pressure Sealed Nature-Air Insulated RMU/Switchgear in China?

    A:
    In China, the atmospheric pressure sealed air insulated RMU has become a widely adopted solution within the power distribution networks of the country’s two largest state-owned grid companies: State Grid Corporation of China (SGCC) and China Southern Power Grid (CSG). Since its inclusion in their procurement catalog in 2017, the air insulated RMU has been recognized as a standard product, with both corporations making large-scale purchases each year. This marks a significant step forward in its adoption across the country, reinforcing its role as a reliable and environmentally friendly option for modern power distribution.

  • What is the installation requirement?

    A:
    The RMU can be mounted against wall and 80cm of space should be preserved in front of the cabinet for installation. The switchgear adopts lower incoming and lower outing of cable. Please contact us if you prefer other installation methods.

  • Is there any possibility of combining the HM POWER’s RMU with other brands’ switchgear?

    A:
    Combining switchgears of different brands is not advised, as they vary in plug and circuit and combining them may result in risks.

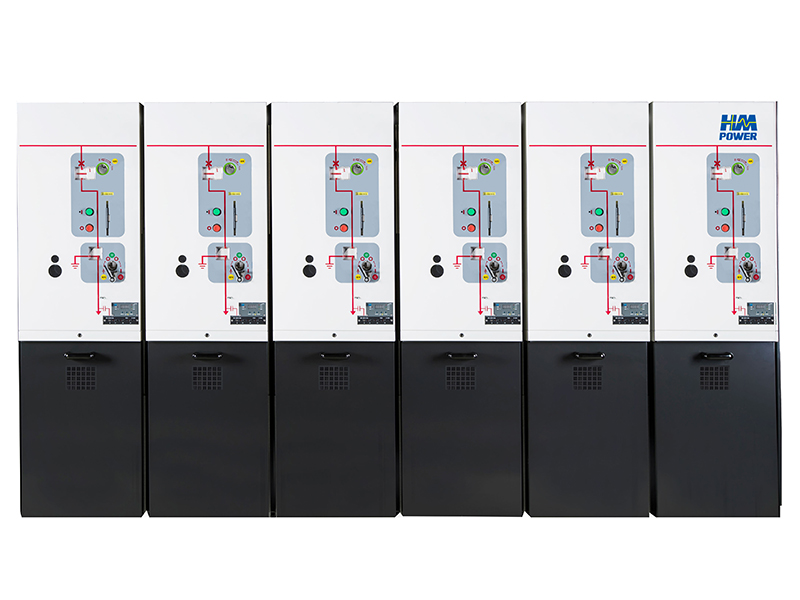

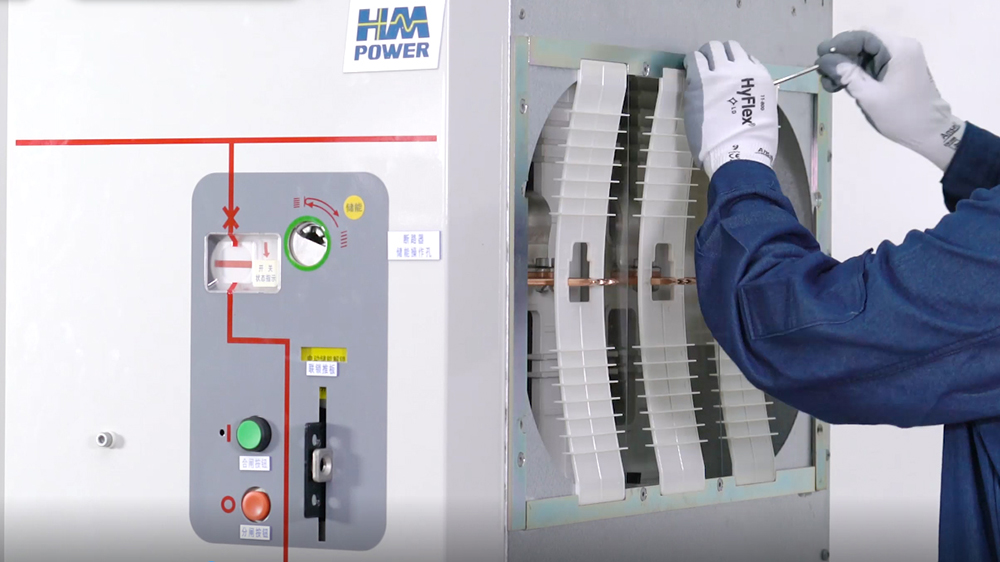

Switchgear Cabinet Baying
Switchgear Cabinet Baying

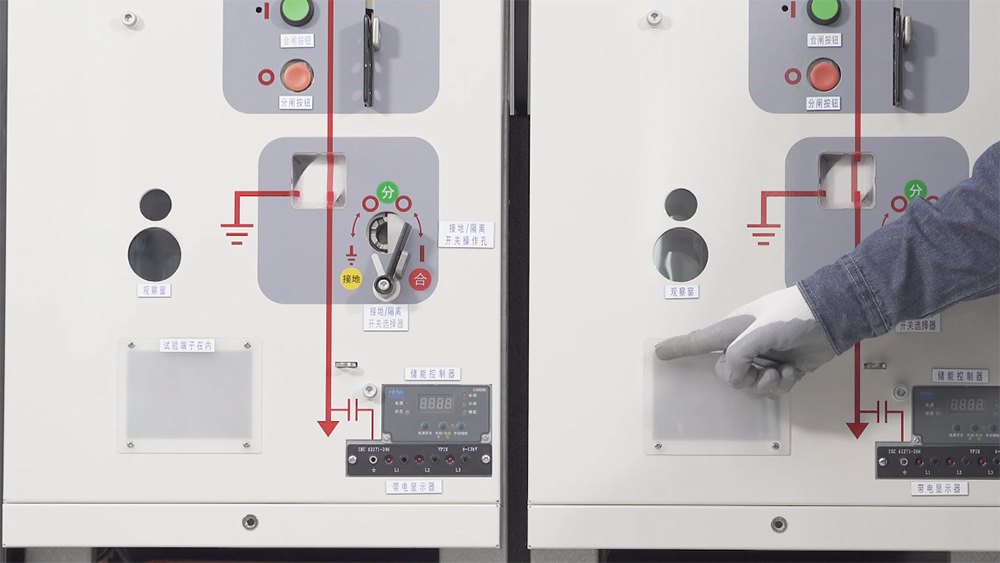

Voltage Withstand Test
Voltage Withstand Test
